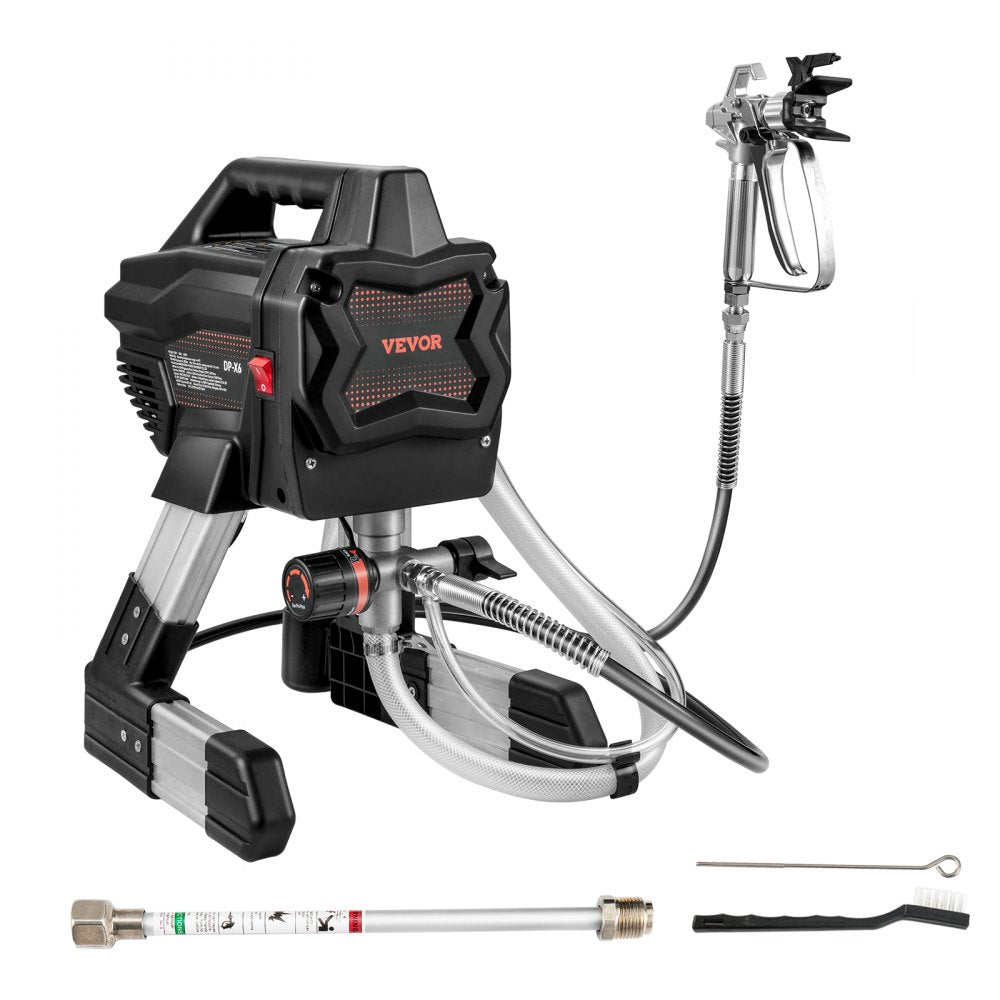

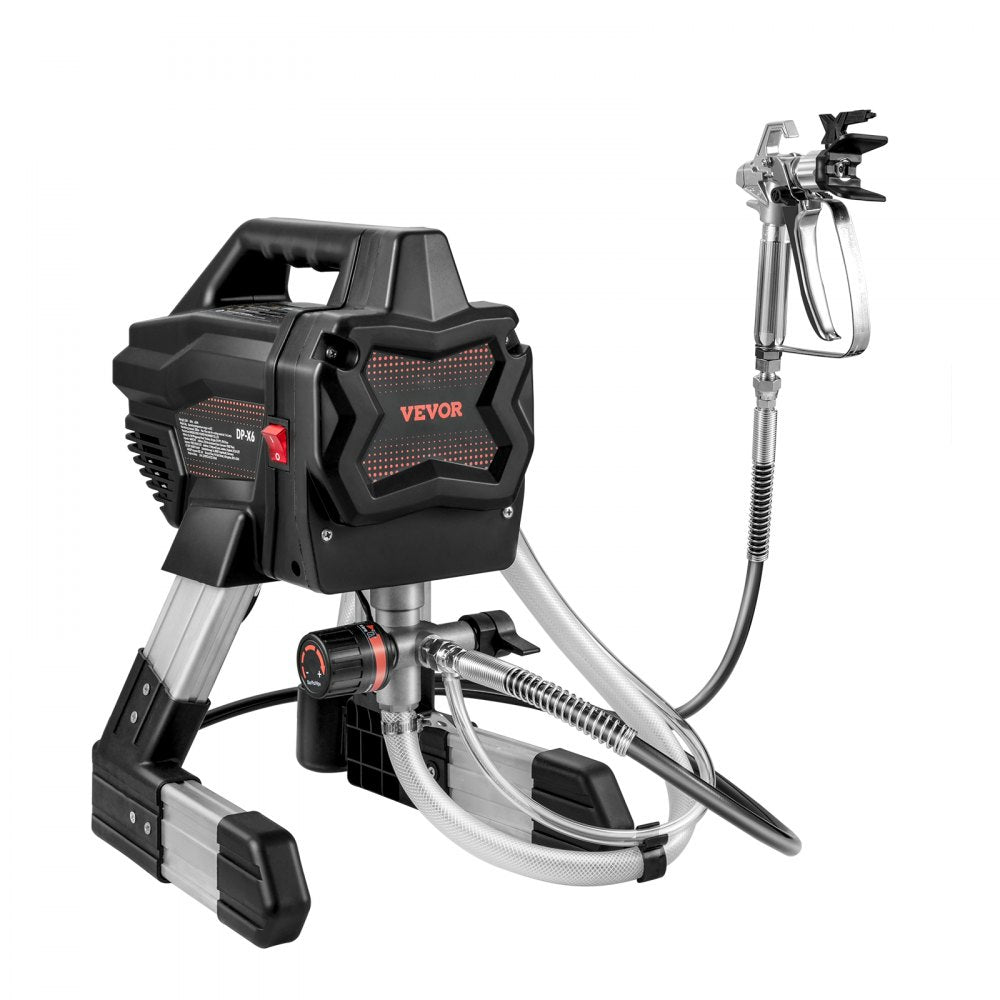

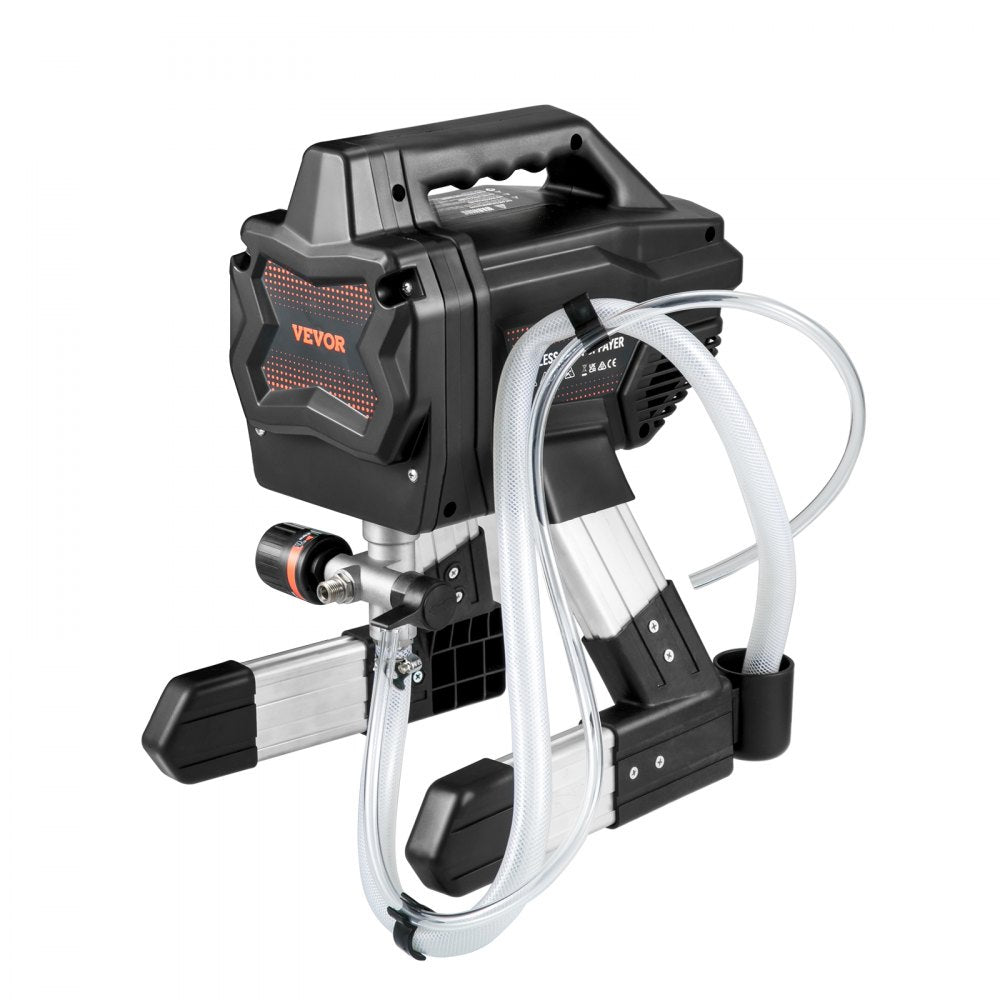

ODDTOOLS Stand Airless Paint Sprayer, 7/8HP 650W High Efficiency Airless Sprayer, 2900PSI Electric Paint Sprayer Machine Extension Rod and Cleaning Kits for Interior Exterior Furniture/Fence/Home/House
Product SKU: ZSSGYWQPTJHHSFR6VV1
Available:
Only 3067 items in stock
3067 items in stock
In stock
Pre-order
Out of stock
$145.99
Want it delivered by
This DIY Series——Stand Airless Paint Sprayer
Powder coating is widely used in home appliances, hardware, security doors, heat sinks, construction, auto parts, sports equipment, medical equipment, aluminum, and other industries. All the reach and quality you could ask for are right here. Get the job done right with This
Q: How to setup?

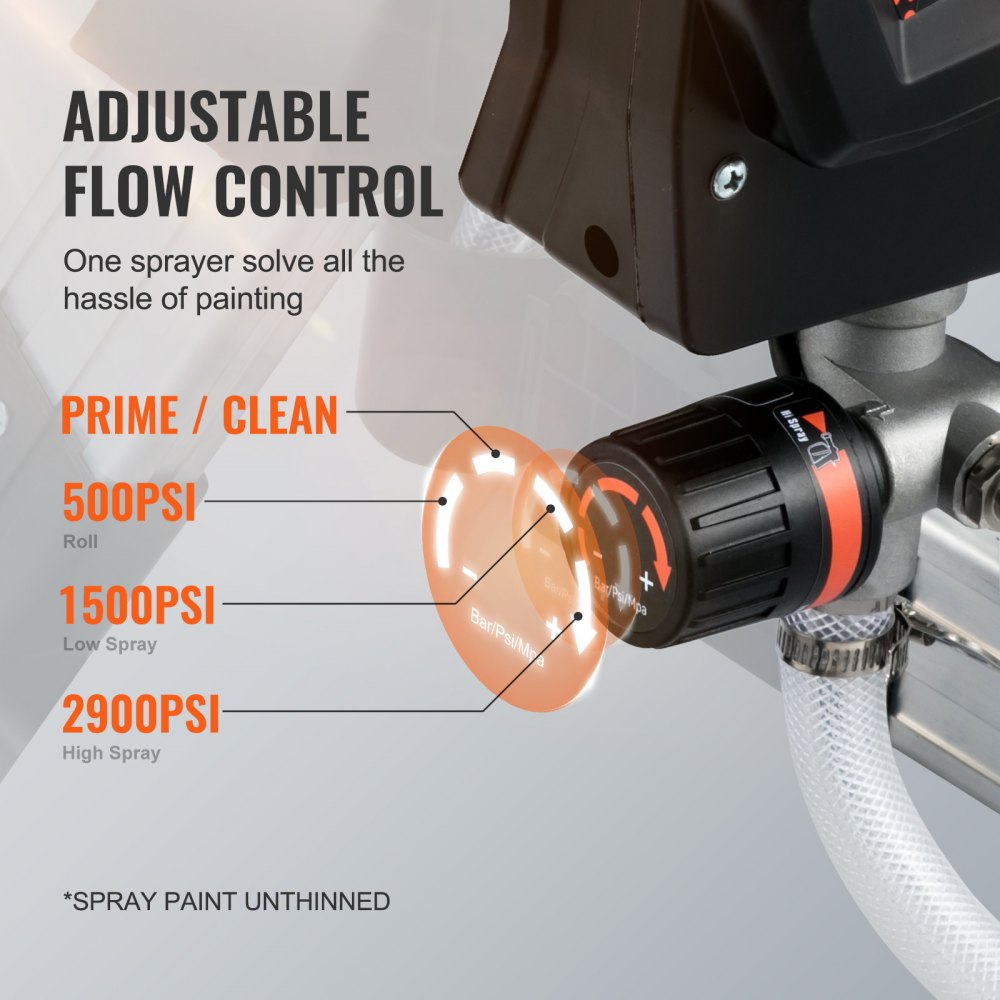

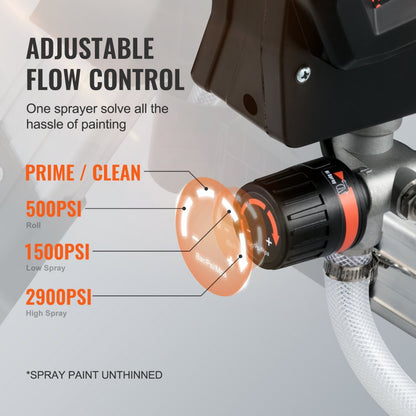

A: First, connect hose to gun. Remove red cap, connect hose to sprayer. Securely tighten. Second, turn gun trigger lock to locked position. Unthread spray tip and guard assembly. Third, turn Pressure Control Knob to lowest setting.
Q: How to start flushing?
A: Turn Power Switch OFF and plug sprayer into the grounded outlet. Separate small. Clear drain tube from large suction tube and place into waste pail. Submerge suction tube in water if spraying water-based material or flushing fluid if spraying oil-based. With the Prime/Spray Valve down to PRIME, turn Pressure Control Knob to Prime/Clean setting. Turn Power Switch ON. Allow fluid to flow out drain tube for 30-60 seconds. Turn Power Switch OFF.
Q: Storage fluid?
A: Remove Power Flush attachment from suction tube and Submerge suction tube. Turn Prime/Spray Valve down to PRIME. Turn Power Switch ON. Turn Pressure Control Knob to Prime/Clean setting. When Pump Armor comes out of drain tube, turn Pressure Control Knob to lowest setting and Power Switch OFF. Tum Prime/Spray Valve to SPRAY and install inlet strainer on suction tube for storage.
A: First, connect hose to gun. Remove red cap, connect hose to sprayer. Securely tighten. Second, turn gun trigger lock to locked position. Unthread spray tip and guard assembly. Third, turn Pressure Control Knob to lowest setting.
Q: How to start flushing?
A: Turn Power Switch OFF and plug sprayer into the grounded outlet. Separate small. Clear drain tube from large suction tube and place into waste pail. Submerge suction tube in water if spraying water-based material or flushing fluid if spraying oil-based. With the Prime/Spray Valve down to PRIME, turn Pressure Control Knob to Prime/Clean setting. Turn Power Switch ON. Allow fluid to flow out drain tube for 30-60 seconds. Turn Power Switch OFF.
Q: Storage fluid?
A: Remove Power Flush attachment from suction tube and Submerge suction tube. Turn Prime/Spray Valve down to PRIME. Turn Power Switch ON. Turn Pressure Control Knob to Prime/Clean setting. When Pump Armor comes out of drain tube, turn Pressure Control Knob to lowest setting and Power Switch OFF. Tum Prime/Spray Valve to SPRAY and install inlet strainer on suction tube for storage.

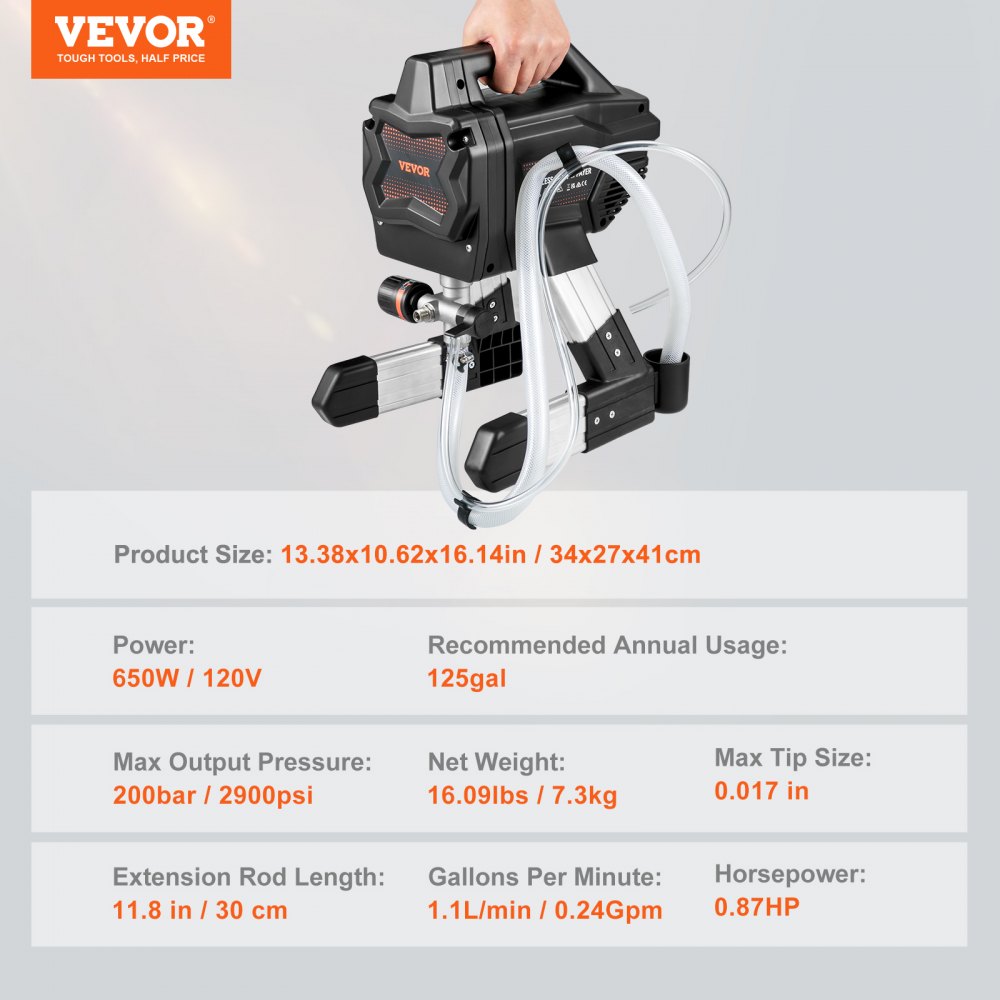

Specification

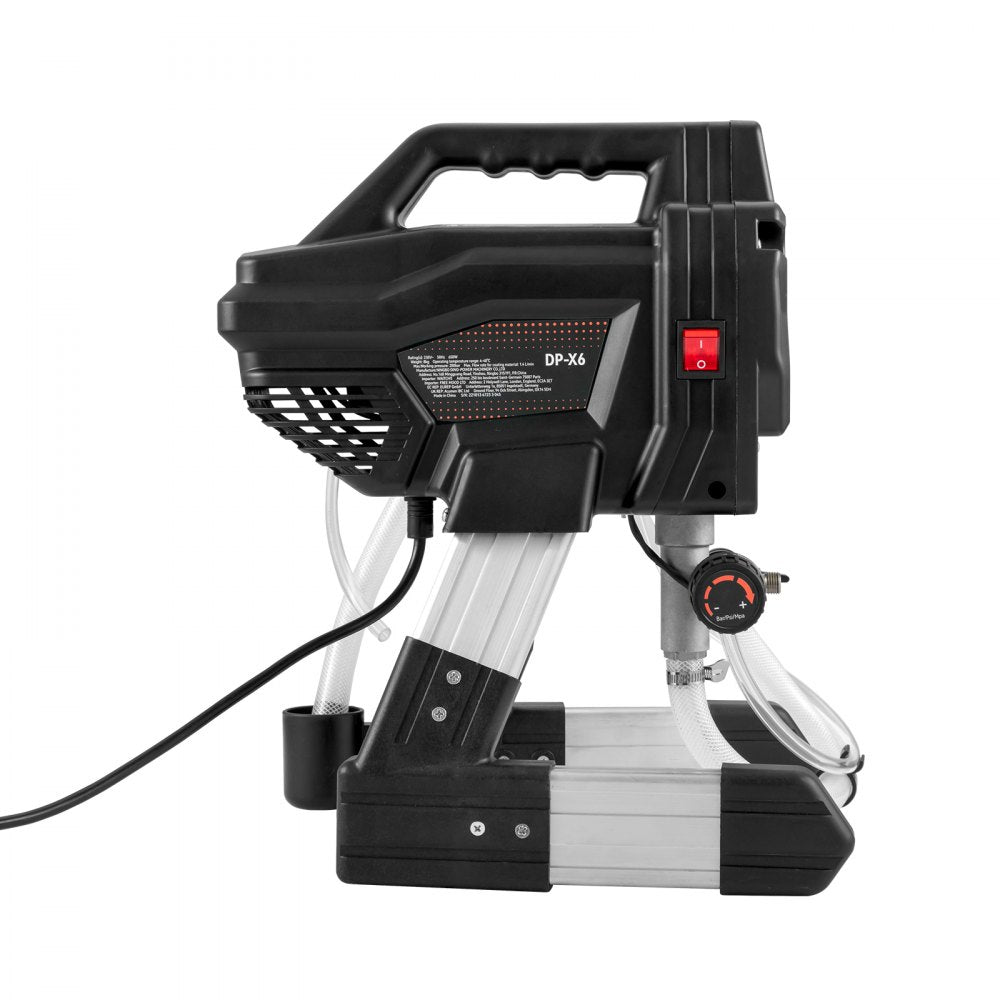

- Model
- X6
- Power
- 650 W
- Voltage
- 110 V 60 Hz
- Max Pressure
- 2900 PSI / 200 bar
- Max Flow Rate
- 1.1 L/min / 0.24 GPM
- Recommended Annual Usage
- 125 gal
- 517 Tip Spray Angle
- 0 - 50°
- 517 Tip Spray Range
- 10 - 12 in / 25 - 30 cm
- 517 Tip Diameter
- 0.017 in / 0.43 mm
- Hose Length
- 24.6 ft / 7.5 m
- Inlet Size
- 1/4 in Thread
- Outlet Size
- 7/8 in Thread
- Extension Rod Length
- 11.8 in / 30 cm
- Extension Rod Material
- Aluminum
- Product Size
- 13.38 x 10.62 x 16.14 in / 34 x 27 x 41 cm
- Net Weight
- 16.09 lbs / 7.3 kg
